Pre-finished set automatically supplies the cistern/rainwater tank with mains-water in dry... more
Product information "WISY Potable Water Feed Set- 1" - 20 m cable"
Pre-finished set automatically supplies the cistern/rainwater tank with mains-water in dry seasons
Economical & demand-related feed for minimal top-up volume
According to German standard DIN 1989/DIN EN 1717 & provides type AA air-gap compliancy with UK Water Regulations
Volume @ 3bar mains-water supply: 8.64m³/h

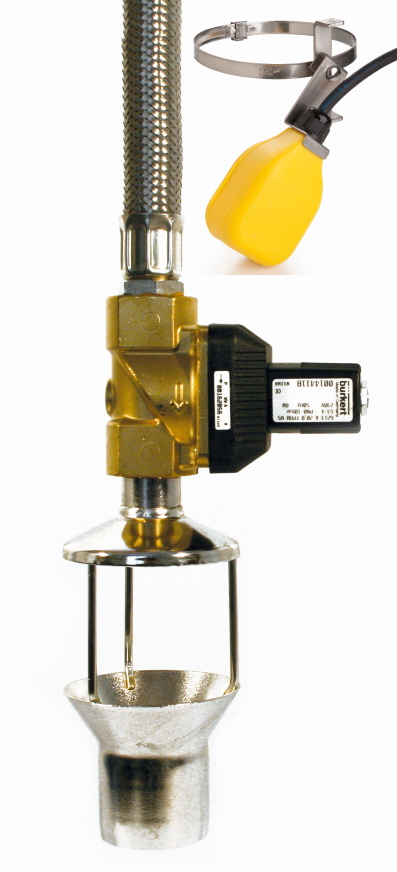

Mains water top-up set consists of:
- 1” Open Potable Water Outlet (TW9903)
Stainless-Steel Tundish with laminar flow device for splash-free filling, 1" solenoid-valve with connecting cable and electric plug, connecting hose (length 75 cm) with a stainless-steel braiding, brass ball valve with dirt trap of stainless-steel (mesh size 0,65 mm)
Inlet funnel: DN70 (70mm/3") for gravity-flow to tank
- Intermediate-Plug (SS0149) with 3-pin UK-adapter
- Float-Switch with 20m cable & stainless-steel fastening clamp (SS1003) to switch solenoid-valve
Economical & demand-related feed for minimal top-up volume
According to German standard DIN 1989/DIN EN 1717 & provides type AA air-gap compliancy with UK Water Regulations
Volume @ 3bar mains-water supply: 8.64m³/h
Mains water top-up set consists of:
- 1” Open Potable Water Outlet (TW9903)
Stainless-Steel Tundish with laminar flow device for splash-free filling, 1" solenoid-valve with connecting cable and electric plug, connecting hose (length 75 cm) with a stainless-steel braiding, brass ball valve with dirt trap of stainless-steel (mesh size 0,65 mm)
Inlet funnel: DN70 (70mm/3") for gravity-flow to tank
- Intermediate-Plug (SS0149) with 3-pin UK-adapter
- Float-Switch with 20m cable & stainless-steel fastening clamp (SS1003) to switch solenoid-valve
