WISY Float-Switch | 10m cable | for Mains Water Top-Up

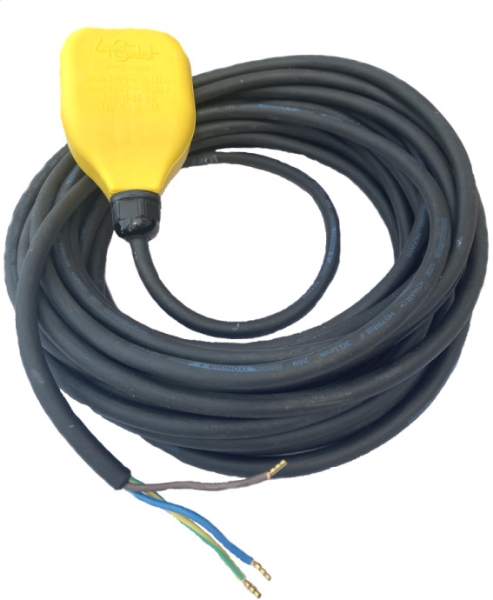

Float-Switch with 10m cable for Mains Water Top-Up
€109.47 *
excl. VAT: €89.00 VAT: €20.47 *

Prices incl. VAT plus transport costs

Ready for dispatch! Delivery-time: 1-3 working days (ROI & NI)

  • SS1022
  • SS 1022
  • 4260465356319
  • 1.5 kg
  • WISY
Cable material: H07RN8-F, 3x 1.0mm² Cable length: 10m | 3x core cable (L-L1-PE) with... more
Product information "WISY Float-Switch | 10m cable | for Mains Water Top-Up"

Cable material: H07RN8-F, 3x 1.0mm²
Cable length: 10m | 3x core cable (L-L1-PE) with protective earth conductor (PE)
10(8) A | 250 V | IP68
Material Float: PP (non-toxic polypropylene) | Dimensions (mm): 68 x 90 x 41 | Colour: yellow
T(max) = 40°C | Storage(max) = 95°C
Function: filling
Switching angle: ±45°
Certifications: VDE, CE | Made in Germany



Float Switch for Rainwater Tank mains top up

Low-level Float Switch located inside a rainwater harvesting tank or header tank to activate a solenoid-valve, back-up supply, pump or low-level signal/alarm.



The float switch in the downward position closes the contact between L & L1. In the upward position the contact between L & L1 is opened.


Applications: - filling

  • level-controlled filling (ON/OFF) of tanks; rainwater tank, header tank, intermediary buffer-tank
  • low level signal/alarm of rainwater harvesting tank



The float switch in the downward position activates an external solenoid-valve or pump to supply water to the tank.

The low level alarm or signal can also be used to activate an emergency signal or to display a status on a control panel. It can also be used to trigger a backup supply (e.g. automatic switch-over from rainwater to well-water, if rainwater tank is empty).



Connection is either possible directly to solenoid-valve, pump or indirectly to the rainwater harvesting control panel.



The float switch for mains water top-up is an emergency back-up in order to ensure continuous automatic supply at a rainwater harvesting system or water-supply system, in case the primary water supply source (e.g. low level inside rainwater tank) is not available.



Brown = L; phase/power supply

Blue = L1; to solenoid-valve, low level alarm, back-up supply or rainwater control panel

Green/Yellow = PE (earth conductor)



SAFETY NOTICE: due to submerged operation, a float switch with earth conductor (PE) is recommended at any installation with up to 250V. All float switches supplied by GEMGATE Limited are equipped with an earth conductor!
