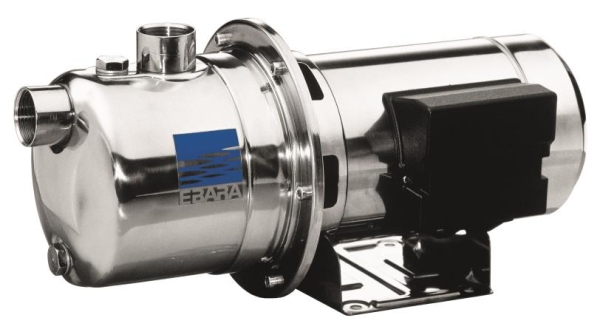

EBARA JES 8

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304)
for water supply, pressure boosting, irrigation and rainwater harvesting
400V|3Ph|50Hz| P1=0.63kW | P2=0.60kW | I=1.3 A | 2-pole
Insulation class: F | Protection Degree: IP44
- low noise operation -
with fan-cover and motor-support
Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel
Impeller in technopolymer (PPE+PS - reinforced)
Service-free mechanical seal (Carbon/Ceramic/NBR)
O-Rings in NBR
External motor-protection provided on-site
Motor Bracket in stainless steel (AISI 304)
Ejector/Diffuser in PPE+PS (reinforced)
T(max): 45°C
Suction Intake: 1“ (FT)
Discharge: 1" (FT)
H(max) = 42.0 m | Q(max) = 2.7 m³/h
Suction height (max.): 6 m
CE | WEEE | Made in EU

Manufacturer:
EBARA Pumps Europe S.p.A., Via Torri di Confine 2/1 int. C, 36053 Gambellara (Vicenza), Italy
Phone: +39 0444 706811
Email: ebara_pumps@ebaraeurope.com
Web: www.ebaraeurope.com
