WISY ZETA 02 Pump Controller - Variable Start-Up Pressure

WISY
Preview: WISY ZETA 02 Pump Controller - Variable Start-Up Pressure Preview: Less than 0.2 Watts in Standby | 97% more energy-efficient Preview: WISY ZETA 02 | Annual Energy Consumption Preview: WISY ZETA 02 Pump Contoller | Installation Example Preview: WISY Zeta 02 pump controller setup with submersible pump & floating suction filter Preview: WISY Zeta 02 pump controller rainwater harvesting

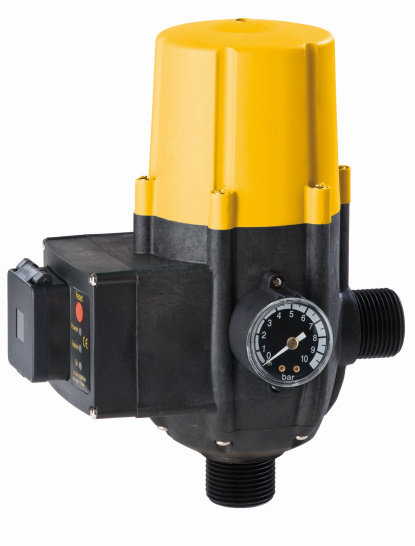

WISY ZETA 02 Pump Controller - Variable Start-Up Pressure
Less than 0.2 Watts in Standby | 97% more energy-efficient
WISY ZETA 02 | Annual Energy Consumption
WISY ZETA 02 Pump Contoller | Installation Example
WISY Zeta 02 pump controller setup with submersible pump & floating suction filter
WISY Zeta 02 pump controller rainwater harvesting

€269.37 *
excl. VAT: €219.00 VAT: €50.37 *

Prices incl. VAT plus transport costs

Delivery free of charge! (ROI & NI)

Ready for dispatch! Delivery-time: 1-3 working days (ROI & NI)

  • Item-Number: ZT0210
  • Manufacturer-No.: ZT 0210
  • EAN / GTIN: 4260475190453
  • Weight: 2 kg
  • Manufacturer: WISY
Description Evaluations 0 Downloads
Description
Automatic Pressure Switch with variable start-up pressure for pumps with minimum 2.2 bar... more
Close menu
Product information "WISY ZETA 02 Pump Controller - Variable Start-Up Pressure"
Automatic Pressure Switch with variable start-up pressure for pumps with minimum 2.2 bar
230V|1Ph|50 Hz| I=10(8)A
Low Standby Power Consumption: 0.2 W
Protection degree: IP 44 | integrated pressure gauge / manometer
1x Cable: Schuko-Plug/electric mains + 1x Schuko-Socket: power supply to pump
Switches Pump ON/OFF automatically
integrated Dry-Run Protection (manual reset)
Max. Pressure: 10 bar
3x Display LED; Power | ON | Alarm
Reset Button
Programmable Functions; switch off-delay & emergency-stopp
Adjustable Start-Up Pressure: 1.5 bar - 2.8 bar
Switching OFF Pressure: max. pressure of pump
Integrated pressure gauge (0-10bar)
Inlet/Outlet: 1" (MT)
Inlet with integarted non-return valve
T(max): 45°C
