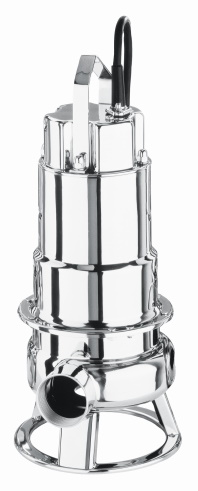

EBARA DW VOX 150

Stainless Steel Submersible Pump for clear and waste water with 10m cable
400V|3Ph|50Hz| P1=1.57kW| P2=1.10kW| I=2.8A
discharge outlet: 2“ (FT)
double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR)
without automatic level control
with VORTEX-impeller
50 mm solids passage
H(max)=11.4m | Q(max)=36.0m³/h
Submergence(max)=7m
Cable: 4x 1.5mm²+ 2x 0.5mm² (H07RN-F)
(thermal contact included for external motor-protection)
Overload-Protection: to be provided on-site
WEEE-certified | CE | Made in EU
