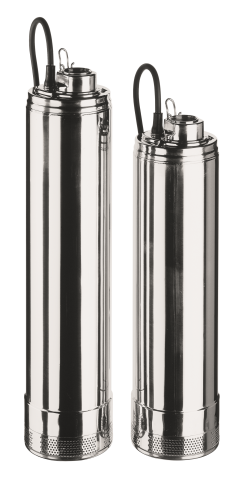

EBARA IDROGO 40/10 multistage submersible pump

€771.21

excl. VAT: €627.00 VAT: €144.21 *

Quantity	Unit price
To 4	€771.21 * (€627.00 excl. VAT, VAT: €144.21 * )
From 5	€743.17 * (€604.20 excl. VAT, VAT: €138.97 * )
From 10	€715.12 * (€581.40 excl. VAT, VAT: €133.72 * )
From 20	€701.10 * (€570.00 excl. VAT, VAT: €131.10 * )

Prices incl. VAT plus transport costs

Delivery free of charge! (ROI & NI)

Delivery time ca. 3-4 working days

Item-Number: 1582054604
Manufacturer-No.: 1582054604
EAN / GTIN: 8052990494378
Weight: 16.1 kg
Manufacturer: EBARA

5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m... more

Close menu

Product information "EBARA IDROGO 40/10"

5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m cable
400V|3Ph|50Hz| P1= 1.18kW| P2= 0.75kW| I=2.2A
for pressurised water-supply from wells, cistern tanks & rainwater harvesting tanks
Fully submerged or partially submerged operation| IP 68
Insulation-Class: F | 2-pole
T(max)=40°C
without automatic level control
Pump body, casing cover in stainless steel (CrNi-Steel 1.4301)
External casing & motor casing in stainless steel (CrNi-steel 1.4301)
Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber
Impeller & diffuser in technopolymer
Discharge outlet: 1¼“ (FT)
Sieve intake | Solids passage: 2.5 mm
H(max)= 60.0 m | Q(max)=4.8 m³/h
Submergence(max)=17 m
WRAS-approved | TÜV/GS-certified | CE-certified | WEEE-vertified
Made in EU

Manufacturer:
EBARA Pumps Europe S.p.A., Via Torri di Confine 2/1 int. C, 36053 Gambellara (Vicenza), Italy
Phone: +39 0444 706811
Email: ebara_pumps@ebaraeurope.com
Web: www.ebaraeurope.com
