EBARA IDROGO M80/12 A multistage submersible pump

Preview: EBARA Idrogo | Pump Chamber Dimensions (mm)

EBARA Idrogo | Pump Chamber Dimensions (mm)

€876.74

excl. VAT: €712.80 VAT: €163.94 *

Quantity	Unit price
To 4	€876.74 * (€712.80 excl. VAT, VAT: €163.94 * )
From 5	€844.86 * (€686.88 excl. VAT, VAT: €157.98 * )
From 10	€812.98 * (€660.96 excl. VAT, VAT: €152.02 * )
From 20	€797.04 * (€648.00 excl. VAT, VAT: €149.04 * )

Prices incl. VAT plus transport costs

Delivery free of charge! (ROI & NI)

Delivery time ca. 3-4 working days

Item-Number: 1592064621
Manufacturer-No.: 1592064621
EAN / GTIN: 8052990494330
Weight: 16.7 kg
Manufacturer: EBARA

5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m... more

Close menu

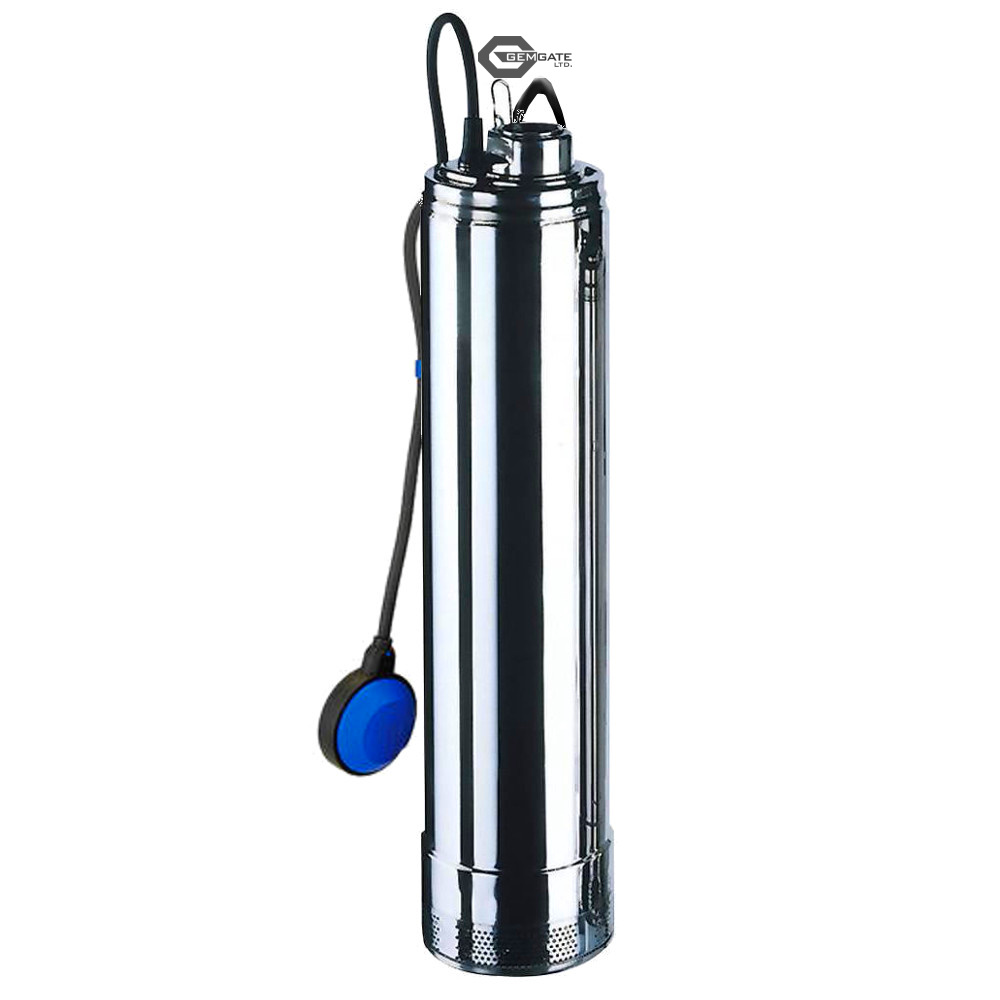

Product information "EBARA IDROGO M80/12 A"

5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m cable
230V|1Ph|50Hz| P1= 1.33kW| P2= 0.90kW| I=6.4A
for pressurised water-supply from wells, cistern tanks & rainwater harvesting tanks
Fully submerged or partially submerged operation| IP 68
Insulation-Class: F | 2-pole
T(max)=40°C
Dry-Run protective operation via Float-Switch
Pump body, casing cover in stainless steel (CrNi-Steel 1.4301)
External casing & motor casing in stainless steel (CrNi-steel 1.4301)
Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber
Impeller & diffuser in technopolymer
Discharge outlet: 1¼“ (FT)
Sieve intake | Solids passage: 2.5 mm
H(max)= 49.0 m | Q(max)=7.2 m³/h
Submergence(max)=17 m
WRAS-approved | TÜV/GS-certified | CE-certified | WEEE-vertified
Made in EU

Manufacturer:
EBARA Pumps Europe S.p.A., Via Torri di Confine 2/1 int. C, 36053 Gambellara (Vicenza), Italy
Phone: +39 0444 706811
Email: ebara_pumps@ebaraeurope.com
Web: www.ebaraeurope.com
