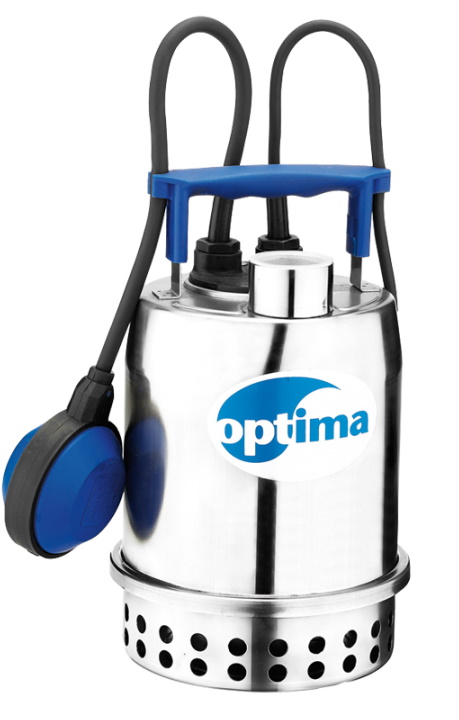

EBARA OPTIMA MA

Stainless Steel Submersible Pump for clear and waste water with 10m cable (H07RN8-F)
230V|1Ph|50Hz| P1=430W| P2=250W| I=1.9A
discharge outlet: 1¼“(FT) | separate non-return flap included
with mechanical seal (carbon/ceramic/NBR)
T(max)=50°C
with automatic level control | Float-Switch
hydraulics made from Thermoplast with high abrasion resistance
10 mm solids passage
H(max)=7.6 m | Q(max)=9.0 m³/h
Submergence(max)=5m
TÜV/GS-certified | CE-certified | UKCA-certified | WEEE-certified | Made in EU

The submersible sump pump EBARA OPTIMA MA with stainless steel pump casing is equipped with a mechanical seal within an interpoised oil-chamber for a long service lifespan. The maximum volume capacity of the pump is 150 litres per minute or 9,000 litres per hour.

The vertical discharge (1¼“ - female threading) at the top of the pump with jacket-cooling also enables safe operation even when the pump is only partially submerged (e.g. draining of flooded basements).

The EBARA OPTIMA MA is fitted with a float switch for automatic level-controlled operation within a pump chamber, sump chamber or collection tank.

Typical areas of applications include:

• discharge of wastewater and dirty water with solids of up to 10mm
• wastewater treatment systems & septic tanks; discharge of treated effluent to the percolation area
• draining of flooded basements and garages; optional EBARA Low Suction Kit available (additional accessory)
• emptying of pump and sump chambers
• emptying of drainage chambers and surface water collection chambers
• discharge of greywater chambers; from washing-machines, dishwashers, showers and washhand-basins located below the sewerage level

The submersible pump EBARA OPTIMA MA is TÜV/GS-certified (German technical inspection authority) and is equipped with a 10m cable and has replaced the previous pump model EBARA BEST ZERO MA.
