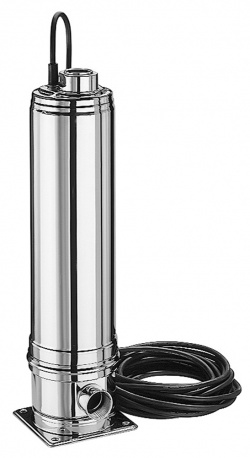

EBARA MULTIGO 40/8

Stainless steel submersible rainwater pump for clean water with 20m cable
400V|3Ph|50Hz| P1= 0.95kW| P2= 0.60kW| I=1.9A
Formerly: EBARA MULTIGO 40/08
Vertical multistage pump for pressurised water-supply | suitable for rainwater harvesting-systems
Submerged or non-submerged operation | IP 68
Insulation-Class: F | 2-pole
T(max)=40°C
Pump body, casing cover in stainless steel (CrNi-Steel 1.4301)
External casing & motor casing in stainless steel (CrNi-steel 1.4301)
Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber
Impeller & diffuser in technopolymer
Pump intake: 1¼“ (FT) | suitable for floating suction filter
Discharge outlet: 1¼“ (FT)
H(max)= 48.0 m | Q(max)=4.8 m³/h
Submergence (max)=17 m
Suction height (max)=6 m
CE-certified | WEEE-vertified | Made in EU

Manufacturer:
EBARA Pumps Europe S.p.A., Via Torri di Confine 2/1 int. C, 36053 Gambellara (Vicenza), Italy
Phone: +39 0444 706811
Email: ebara_pumps@ebaraeurope.com
Web: www.ebaraeurope.com
