EBARA RIGHT 75 MA submersible pump 230V/50Hz 0.55kW from €471.84

Preview: EBARA RIGHT Pump | Performance Curve

Preview: EBARA RIGHT Pumps | Sump Dimensions (mm)

EBARA RIGHT Pumps | Sump Dimensions (mm)

€471.84

excl. VAT: €383.61 VAT: €88.23 *

Quantity	Unit price
To 9	€471.84 * (€383.61 excl. VAT, VAT: €88.23 * )
From 10	€455.28 * (€370.15 excl. VAT, VAT: €85.13 * )
From 20	€430.45 * (€349.96 excl. VAT, VAT: €80.49 * )
From 30	€413.90 * (€336.50 excl. VAT, VAT: €77.40 * )

Prices incl. VAT plus transport costs

Delivery free of charge! (ROI & NI)

Ready for dispatch! Delivery-time: 1-3 working days (ROI & NI)

Item-Number: 1771031421
Manufacturer-No.: 1771031421A
EAN / GTIN: 8052990493920
Weight: 10.2 kg
Manufacturer: EBARA

Stainless Steel Submersible Pump for clear and waste water with 10m cable 230V |1Ph|50Hz|... more

Close menu

Product information "EBARA RIGHT 75 MA"

Stainless Steel Submersible Pump for clear and waste water with 10m cable
230V|1Ph|50Hz| P1= 1.00kW| P2= 0.55kW| I=4.8A
discharge outlet: 1½“ (FT), T(max) = 50°C

double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR)
with automatic level control
35 mm solids passage
H(max)=8.8 m | Q(max)=14.4 m³/h
Submergence(max)=7 m
WEEE-certified | CE | Made in EU

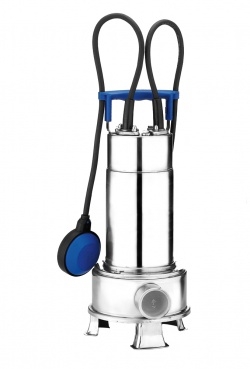

The EBARA RIGHT 75 MA is a complete stainless-steel submersible pump with float-switch for automatic level control operation.

It is used in sump pump chambers for general drainage, wastewater & sewage water handling with a solids passage of up to 35mm.

Motor-cooling is provided by the surrounding medium within the sump chamber. It is therefore recommended to operate the EBARA RIGHT 75 MA fully submerged. Operating the pump only partially submerged is fine for brief periods as the float-switch drops down to the switch OFF level. Prolonged operation only partially submerged should however be avoided.

Applications include draining wells, garages, cellars or places subject to flooding.

The EBARA RIGHT 75 MA is fitted with a float switch for automatic level-controlled operation within a pump chamber, sump chamber or collection tank.

Typical areas of applications include:

discharge of wastewater and dirty water with solids of up to 35mm
emptying of pump and sump chambers
emptying of drainage chambers and surface water collection chambers
discharge of greywater chambers; from washing-machines, dishwashers, showers and washhand-basins located below the sewerage level

Wastewater Treatment System Pump

The EBARA RIGHT 75 MA is also suitable as a submersible pump in domestic wastewater treatment systems and septic tanks to discharge treated effluent to the subsoil polishing filter or percolation area.

The EBARA RIGHT 75 MA submersible pump is suitable for several domestic and commercial wastewater treatment systems in Ireland where higher pumping volume is required. Some treatment systems are listed below:

(when replacing a pump, please check the technical details on the label of the existing pump and compare with the above. Assistance is available.)

Oakstown BAF Domestic WWTS
Oakstown BAF Commercial WWTS
Puraflo | Bord Na Mona
Tricel Novo (selected systems only)

At installations where the percolation area is not located in close proximity to the wastewater treatment system or septic tank a larger submersible pump may be required.

A general guideline to wastewater treatment systems & servicing, including replacement of the submersible effluent pump, is available for download in pdf-Format:

GUIDE – Wastewater Treatment Systems
