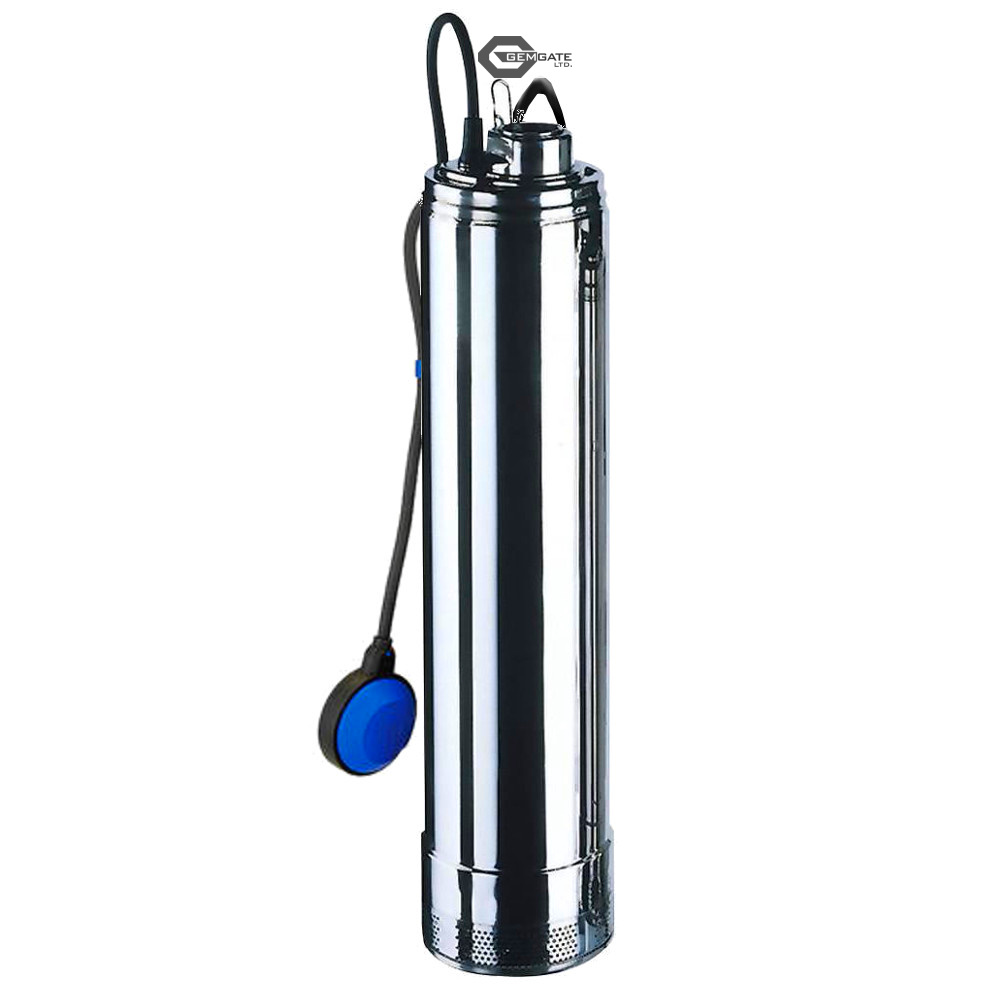

EBARA IDROGO M40/06 A multistage submersible pump

Preview: EBARA Idrogo | Pump Chamber Dimensions (mm)

EBARA Idrogo | Pump Chamber Dimensions (mm)

€652.15

excl. VAT: €530.20 VAT: €121.95 *

Quantity	Unit price
To 4	€652.15 * (€530.20 excl. VAT, VAT: €121.95 * )
From 5	€628.43 * (€510.92 excl. VAT, VAT: €117.51 * )
From 10	€604.72 * (€491.64 excl. VAT, VAT: €113.08 * )
From 20	€592.86 * (€482.00 excl. VAT, VAT: €110.86 * )

Prices incl. VAT plus transport costs

Delivery free of charge! (ROI & NI)

Delivery time ca. 3-4 working days

Item-Number: 1581024621
Manufacturer-No.: 1581024621
EAN / GTIN: 8052990494231
Weight: 13.2 kg
Manufacturer: EBARA

5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m... more

Close menu

Product information "EBARA IDROGO M40/06 A"

5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m cable
230V|1Ph|50Hz| P1= 0.82kW| P2= 0.44kW| I=3.8A
for pressurised water-supply from wells, cistern tanks & rainwater harvesting tanks
Fully submerged or partially submerged operation| IP 68
Insulation-Class: F | 2-pole
T(max)=40°C
Dry-Run protective operation via Float-Switch
Pump body, casing cover in stainless steel (CrNi-Steel 1.4301)
External casing & motor casing in stainless steel (CrNi-steel 1.4301)
Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber
Impeller & diffuser in technopolymer
Discharge outlet: 1¼“ (FT)
Sieve intake | Solids passage: 2.5 mm
H(max)= 36.5 m | Q(max)=4.8 m³/h
Submergence(max)=17 m
WRAS-approved | TÜV/GS-certified | CE-certified | WEEE-vertified
Made in EU
