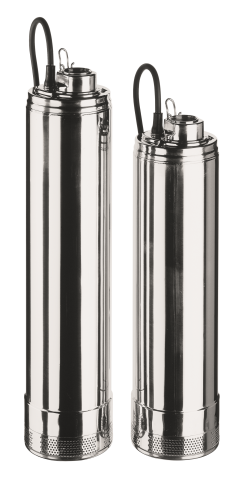

EBARA IDROGO M40/06

5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m cable
230V|1Ph|50Hz| P1= 0.82kW| P2= 0.44kW| I=3.8A
for pressurised water-supply from wells, cistern tanks & rainwater harvesting tanks
Fully submerged or partially submerged operation| IP 68
Insulation-Class: F | 2-pole
T(max)=40°C
without automatic level control
Pump body, casing cover in stainless steel (CrNi-Steel 1.4301)
External casing & motor casing in stainless steel (CrNi-steel 1.4301)
Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber
Impeller & diffuser in technopolymer
Discharge outlet: 1¼“ (FT)
Sieve intake | Solids passage: 2.5 mm
H(max)= 36.5 m | Q(max)=4.8 m³/h
Submergence(max)=17 m
WRAS-approved | TÜV/GS-certified | CE-certified | WEEE-vertified
