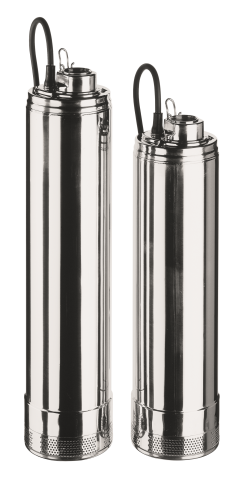

EBARA IDROGO 40/08 multistage submersible pump

€623.73

excl. VAT: €507.10 VAT: €116.63 *

Quantity	Unit price
To 4	€623.73 * (€507.10 excl. VAT, VAT: €116.63 * )
From 5	€601.05 * (€488.66 excl. VAT, VAT: €112.39 * )
From 10	€578.37 * (€470.22 excl. VAT, VAT: €108.15 * )
From 20	€567.03 * (€461.00 excl. VAT, VAT: €106.03 * )

Prices incl. VAT plus transport costs

Delivery free of charge! (ROI & NI)

Delivery time ca. 3-4 working days

Item-Number: 1582034604
Manufacturer-No.: 1582034604
EAN / GTIN: 8052990494361
Weight: 14.8 kg
Manufacturer: EBARA

5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m... more

Close menu

Product information "EBARA IDROGO 40/08"

5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m cable
400V|3Ph|50Hz| P1= 0.95kW| P2= 0.60kW| I=1.9A
for pressurised water-supply from wells, cistern tanks & rainwater harvesting tanks
Fully submerged or partially submerged operation| IP 68
Insulation-Class: F | 2-pole
T(max)=40°C
without automatic level control
Pump body, casing cover in stainless steel (CrNi-Steel 1.4301)
External casing & motor casing in stainless steel (CrNi-steel 1.4301)
Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber
Impeller & diffuser in technopolymer
Discharge outlet: 1¼“ (FT)
Sieve intake | Solids passage: 2.5 mm
H(max)= 48.0 m | Q(max)=4.8 m³/h
Submergence(max)=17 m
WRAS-approved | TÜV/GS-certified | CE-certified | WEEE-vertified
Made in EU

Manufacturer:
EBARA Pumps Europe S.p.A., Via Torri di Confine 2/1 int. C, 36053 Gambellara (Vicenza), Italy
Phone: +39 0444 706811
Email: ebara_pumps@ebaraeurope.com
Web: www.ebaraeurope.com
