EBARA IDROGO M40/10 A

EBARA IDROGO M40/10 A
€598.22 * €997.04 * (40% Saved)

Prices incl. VAT plus transport costs

Delivery free of charge!

Delivery time ca. 3-4 working days

  • 1582054621
  • 1582054621
  • 8052990494279
  • 16.2 kg
  • EBARA
5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m... more
Product information "EBARA IDROGO M40/10 A"

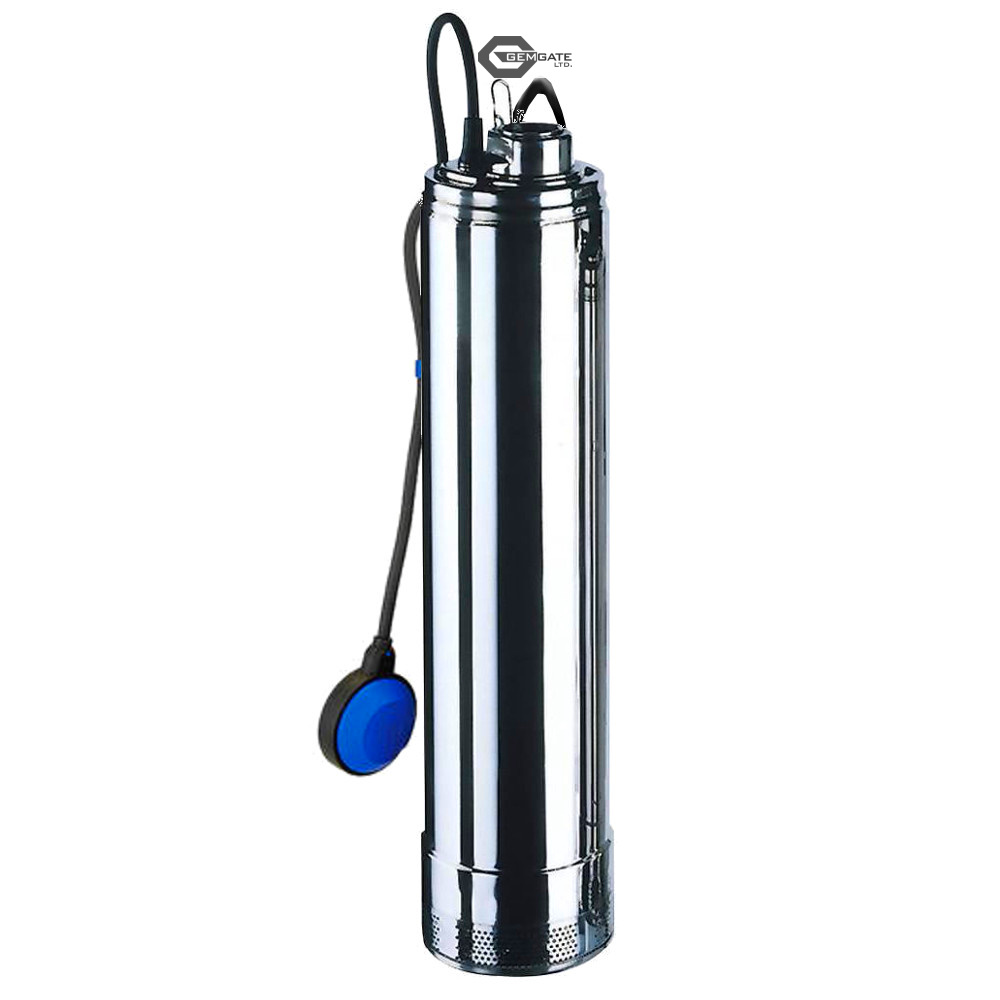

5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m cable
230V|1Ph|50Hz| P1= 1.25kW| P2= 0.75kW| I=5.7A
for pressurised water-supply from wells, cistern tanks & rainwater harvesting tanks
Fully submerged or partially submerged operation| IP 68
Insulation-Class: F | 2-pole
T(max)=40°C
Dry-Run protective operation via Float-Switch
Pump body, casing cover in stainless steel (CrNi-Steel 1.4301)
External casing & motor casing in stainless steel (CrNi-steel 1.4301)
Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber
Impeller & diffuser in technopolymer
Discharge outlet: 1¼“ (FT)
Sieve intake | Solids passage: 2.5 mm
H(max)= 60.0 m | Q(max)=4.8 m³/h
Submergence(max)=17 m
WRAS-approved | TÜV/GS-certified | CE-certified | WEEE-vertified
