EBARA IDROGO M40/12 A

EBARA
Preview: EBARA IDROGO M40/12 A Preview: EBARA Idrogo | Pump Chamber Dimensions (mm)
EBARA IDROGO M40/12 A
EBARA Idrogo | Pump Chamber Dimensions (mm)

€770.53
excl. VAT: €626.45 VAT: €144.08 *
Quantity Unit price
To 4 €770.53 * (€626.45 excl. VAT, VAT: €144.08 * )
From 5 €742.51 * (€603.67 excl. VAT, VAT: €138.84 * )
From 10 €714.49 * (€580.89 excl. VAT, VAT: €133.60 * )
From 20 €700.49 * (€569.50 excl. VAT, VAT: €130.99 * )

Prices incl. VAT plus transport costs

Delivery free of charge! (ROI & NI)

Delivery time ca. 3-4 working days

  • Item-Number: 1582064621
  • Manufacturer-No.: 1582064621
  • EAN / GTIN: 8052990494293
  • Weight: 17.4 kg
  • Manufacturer: EBARA
Description Evaluations 0 Downloads
Description
5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m... more
Close menu
Product information "EBARA IDROGO M40/12 A"

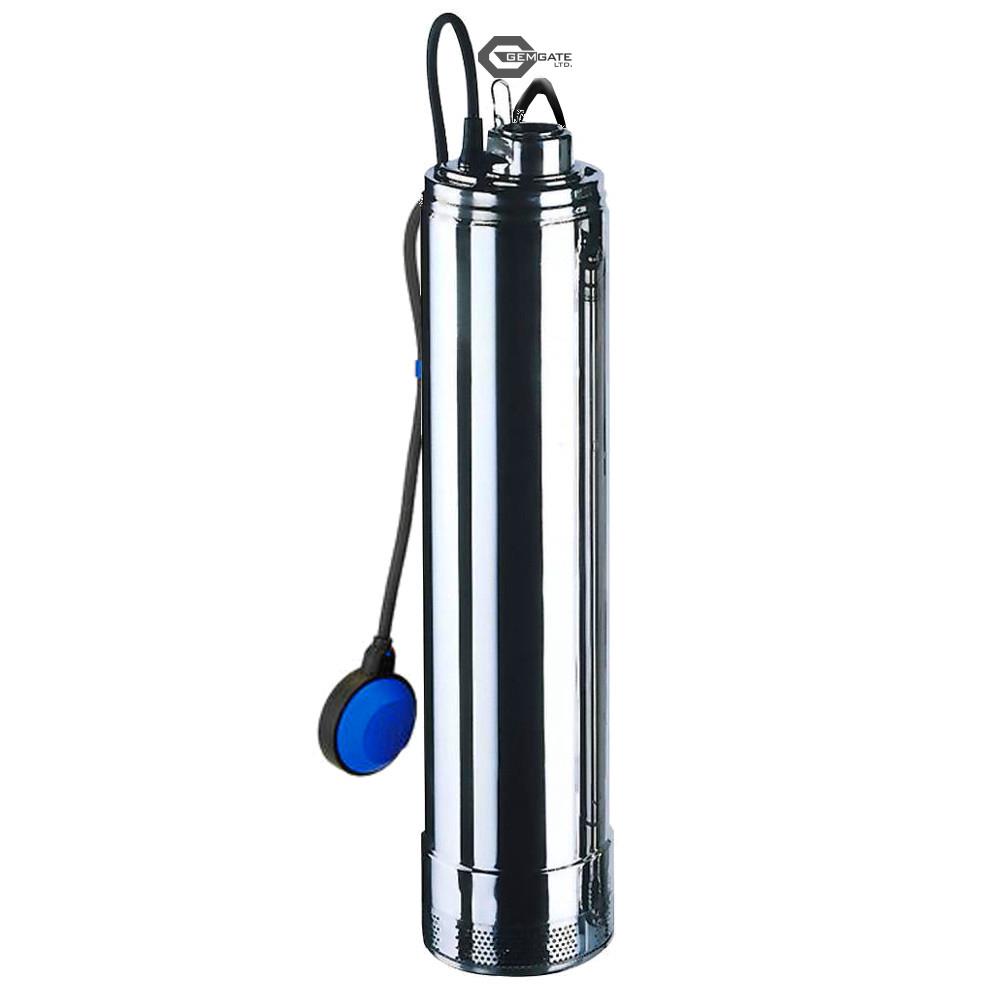

5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m cable
230V|1Ph|50Hz| P1= 1.42kW| P2= 0.90kW| I=6.8A
for pressurised water-supply from wells, cistern tanks & rainwater harvesting tanks
Fully submerged or partially submerged operation| IP 68
Insulation-Class: F | 2-pole
T(max)=40°C
Dry-Run protective operation via Float-Switch
Pump body, casing cover in stainless steel (CrNi-Steel 1.4301)
External casing & motor casing in stainless steel (CrNi-steel 1.4301)
Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber
Impeller & diffuser in technopolymer
Discharge outlet: 1¼“ (FT)
Sieve intake | Solids passage: 2.5 mm
H(max)= 72.0 m | Q(max)=4.8 m³/h
Submergence(max)=17 m
WRAS-approved | TÜV/GS-certified | CE-certified | WEEE-vertified
Made in EU

Manufacturer:
EBARA Pumps Europe S.p.A., Via Torri di Confine 2/1 int. C, 36053 Gambellara (Vicenza), Italy
Phone: +39 0444 706811
Email: ebara_pumps@ebaraeurope.com
Web: www.ebaraeurope.com
