€819.24
excl. VAT: €666.05 VAT: €153.19 *
Quantity | Unit price |
---|---|
To 4 | €819.24 * (€666.05 excl. VAT, VAT: €153.19 * ) |
From 5 | €789.45 * (€641.83 excl. VAT, VAT: €147.62 * ) |
From 10 | €759.66 * (€617.61 excl. VAT, VAT: €142.05 * ) |
From 20 | €744.77 * (€605.50 excl. VAT, VAT: €139.27 * ) |
Prices incl. VAT plus transport costs
Delivery free of charge! (ROI & NI)
Delivery time ca. 3-4 working days
- Item-Number: 1582074721
- Manufacturer-No.: 1582074721
- EAN / GTIN: 8052990494309
- Weight: 18.3 kg
- Manufacturer: EBARA
5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m... more

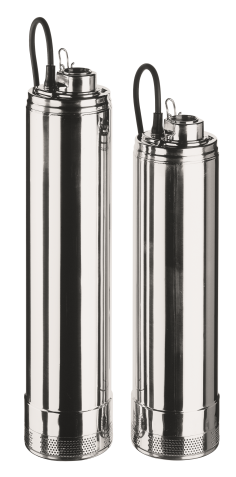

Product information "EBARA IDROGO M40/15"
5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m cable
230V|1Ph|50Hz| P1= 1.60kW| P2= 1.10kW| I=7.3A
for pressurised water-supply from wells, cistern tanks & rainwater harvesting tanks
Fully submerged or partially submerged operation| IP 68
Insulation-Class: F | 2-pole
T(max)=40°C
without automatic level control
Pump body, casing cover in stainless steel (CrNi-Steel 1.4301)
External casing & motor casing in stainless steel (CrNi-steel 1.4301)
Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber
Impeller & diffuser in technopolymer
Discharge outlet: 1¼“ (FT)
Sieve intake | Solids passage: 2.5 mm
H(max)= 84.0 m | Q(max)=4.8 m³/h
Submergence(max)=17 m
WRAS-approved | TÜV/GS-certified | CE-certified | WEEE-vertified
Made in EU
230V|1Ph|50Hz| P1= 1.60kW| P2= 1.10kW| I=7.3A
for pressurised water-supply from wells, cistern tanks & rainwater harvesting tanks
Fully submerged or partially submerged operation| IP 68
Insulation-Class: F | 2-pole
T(max)=40°C
without automatic level control
Pump body, casing cover in stainless steel (CrNi-Steel 1.4301)
External casing & motor casing in stainless steel (CrNi-steel 1.4301)
Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber
Impeller & diffuser in technopolymer
Discharge outlet: 1¼“ (FT)
Sieve intake | Solids passage: 2.5 mm
H(max)= 84.0 m | Q(max)=4.8 m³/h
Submergence(max)=17 m
WRAS-approved | TÜV/GS-certified | CE-certified | WEEE-vertified
Made in EU
