€578.59
excl. VAT: €470.40 VAT: €108.19 *
Quantity | Unit price |
---|---|
To 9 | €578.59 * (€470.40 excl. VAT, VAT: €108.19 * ) |
From 10 | €564.13 * (€458.64 excl. VAT, VAT: €105.49 * ) |
From 20 | €549.66 * (€446.88 excl. VAT, VAT: €102.78 * ) |
From 30 | €527.97 * (€429.24 excl. VAT, VAT: €98.73 * ) |
Prices incl. VAT plus transport costs
Delivery free of charge! (ROI & NI)
Delivery time ca. 3-4 working days
- Item-Number: 1665067200
- Manufacturer-No.: 1665067200
- EAN / GTIN: 8052990494040
- Weight: 11.6 kg
- Manufacturer: EBARA
Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) as a garden... more

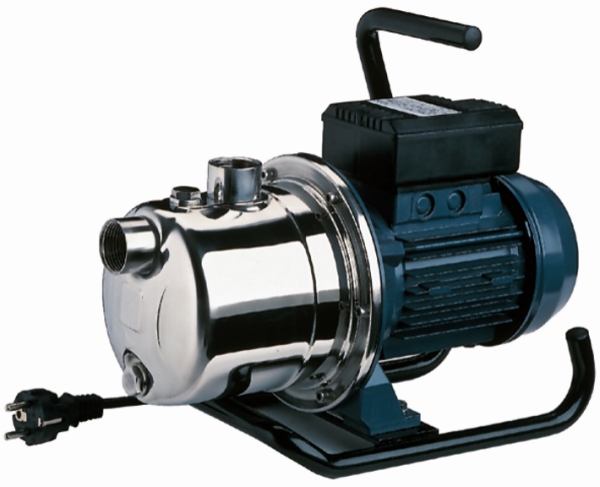

Product information "EBARA JEXM/A 120 Garden"
Self-priming single-impeller centrifugal pump in stainless steel (AISI 304)
as a garden pump for pressurised water supply from wells or tank chamber reservoirs
230V|1Ph|50Hz| P1=1.39kW | P2=0.88kW | I=6.7 A | 2-pole
Insulation class: F | Protection Degree: IP44
with motor-foot (Aluminium), handle (metal), switch & 1.5m power cable
- low noise operation -
with fan-cover and motor-support
Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel
Impeller in stainless steel (AISI 304)
Service-free mechanical seal (Carbon/Ceramic/NBR)
O-Rings in NBR
integrated thermal-overload
Pump Bracket, Motor Support & Casing in Aluminium
Ejector/Diffuser in PPE+PS (reinforced)
T(max): 45°C
Suction Intake: 1¼“ (FT)
Discharge: 1" (FT)
H(max) = 50.0 m | Q(max) = 4.2 m³/h
Suction height (max.): 6 m
TÜV | CE | WEEE | Made in EU
as a garden pump for pressurised water supply from wells or tank chamber reservoirs
230V|1Ph|50Hz| P1=1.39kW | P2=0.88kW | I=6.7 A | 2-pole
Insulation class: F | Protection Degree: IP44
with motor-foot (Aluminium), handle (metal), switch & 1.5m power cable
- low noise operation -
with fan-cover and motor-support
Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel
Impeller in stainless steel (AISI 304)
Service-free mechanical seal (Carbon/Ceramic/NBR)
O-Rings in NBR
integrated thermal-overload
Pump Bracket, Motor Support & Casing in Aluminium
Ejector/Diffuser in PPE+PS (reinforced)
T(max): 45°C
Suction Intake: 1¼“ (FT)
Discharge: 1" (FT)
H(max) = 50.0 m | Q(max) = 4.2 m³/h
Suction height (max.): 6 m
TÜV | CE | WEEE | Made in EU
