Quantity | Unit price |
---|---|
To 9 | €558.91 * (€454.40 excl. VAT, VAT: €104.51 * ) |
From 10 | €544.94 * (€443.04 excl. VAT, VAT: €101.90 * ) |
From 20 | €530.97 * (€431.68 excl. VAT, VAT: €99.29 * ) |
From 30 | €510.01 * (€414.64 excl. VAT, VAT: €95.37 * ) |
Prices incl. VAT plus transport costs
Delivery free of charge! (ROI & NI)
Delivery time ca. 3-4 working days
- Item-Number: 1665060000
- Manufacturer-No.: 1665060000
- EAN / GTIN: 8052990490981
- Weight: 11.6 kg
- Manufacturer: EBARA

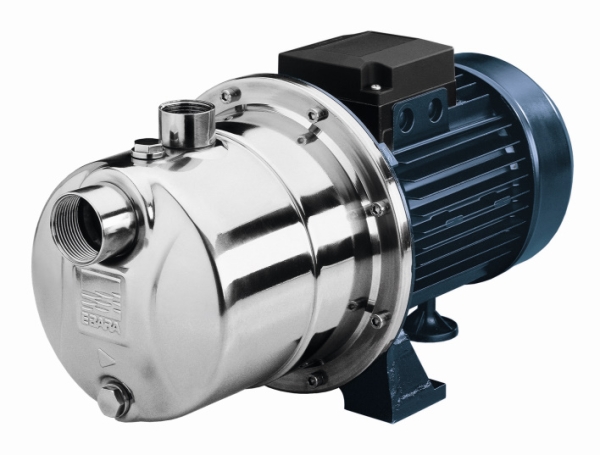

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304)
for water supply, pressure boosting, irrigation and rainwater harvesting
230V|1Ph|50Hz| P1=1.39 kW P2=0.88 kW, I=6.7 A | 2-pole
Insulation class: F | Protection Degree: IP44
- low noise operation -
with fan-cover and motor-support
Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel
Impeller in stainless steel (AISI 304)
Service-free mechanical seal (Carbon/Ceramic/NBR)
O-Rings in NBR
integrated thermal-overload
Pump Bracket, Motor Support & Casing in Aluminium
Ejector/Diffuser in PPE+PS (reinforced)
T(max): 45°C
Suction Connection: 1¼“ (FT)
Discharge Connection: 1" (FT)
H(max) = 50.0 m | Q(max) = 4.2 m³/h
Suction height (max.): 6 m
CE-Kennzeichnung | WEEE | Made in EU
Note: the EBARA JEXM/A 120 has replaced the previously available model EBARA JEXM/A 100
