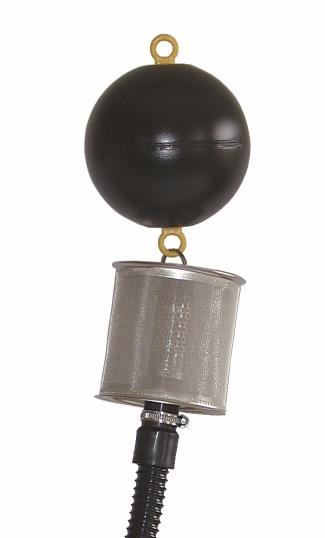

Fine Floating Suction Filter for submersible rainwater pumps
floating intake to extract clean water from within the water column
Filterpart made of stainless steel; 0.3mm (300 micron) mesh-size
Hose material: natural rubber | hose length: 1m
coupler, hose connector and hose clip included
1¼" (MT) connection - suitable for EBARA Multigo pump range
Function of the WISY fine floating suction filterThe WISY fine floating suction filter with 1 metre hose is connected to the intake connection of the submersible pump within the rainwater tank.
The floating intake filter allows the pump, sitting at the bottom of the rainwater storage tank, to draw water from the middle part of the water column below the water surface. This is where the cleaniest water within the rainwater tank is located.
Neither fine sediment on the base of the tank nor fine floating debirs on the water surface such as pollen particles are introduced into the rainwater supply network.
Quality ComponentsThe fine filter-mesh in stainless-steel with a mesh-size of only of 0.3mm additionally prevents particles from being drawn in by the submersible rainwater pump.
The 1 metre hose is manufacured in natural-rubber. This benefits pump operation as the natural-rubber hose maintains the full hose diamater while the pump is taking in water. Cavitation issues related to aging spiral-reinforced hoses are eliminated for reliable and efficient pump cycles.
The natural-rubber hose also ensures a long service-life and does not require renewal over the lifespan of a rainwater harvesting system.
The floating ball of the WISY fine floating suction filter is made of ecologically harmless polyethylene.
