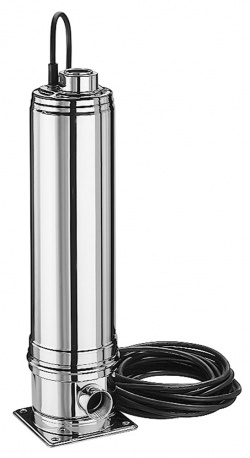

EBARA MULTIGO 80/15

Stainless steel submersible rainwater pump for clean water with 20m cable
400V|3Ph|50Hz| P1= 1.52kW| P2= 1.10kW| I=3.1A
Vertical multistage pump for pressurised water-supply | suitable for rainwater harvesting-systems
Submerged or non-submerged operation | IP 68
Insulation-Class: F | 2-pole
T(max)=40°C
Pump body, casing cover in stainless steel (CrNi-Steel 1.4301)
External casing & motor casing in stainless steel (CrNi-steel 1.4301)
Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber
Impeller & diffuser in technopolymer
Pump intake: 1¼“ (FT) | suitable for floating suction filter
Discharge outlet: 1¼“ (FT)
H(max)= 62.0 m | Q(max)=7.2 m³/h
Submergence(max)=17 m
Suction height(max)=6 m
CE-certified | WEEE-vertified
