- Item-Number: 1665040000
- Manufacturer-No.: 1665040000
- EAN / GTIN: 8052990490936
- Weight: 10.2 kg
- Manufacturer: EBARA
Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) for water supply,... more

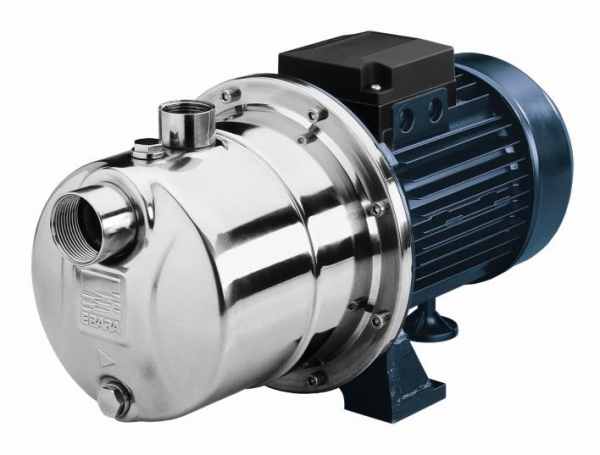

Product information "EBARA JEXM/A 80"
Self-priming single-impeller centrifugal pump in stainless steel (AISI 304)
for water supply, pressure boosting, irrigation and rainwater harvesting
230V|1Ph|50Hz| P1=1.05kW | P2=0.60kW | I=4.7 A | 2-pole
Insulation class: F | Protection Degree: IP44
- low noise operation -
with fan-cover and motor-support
Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel
Impeller in stainless steel (AISI 304)
Service-free mechanical seal (Carbon/Ceramic/NBR)
O-Rings in NBR
integrated thermal-overload
Pump Bracket, Motor Support & Casing in Aluminium
Ejector/Diffuser in PPE+PS (reinforced)
T(max): 45°C
Suction Intake: 1¼“ (FT)
Discharge: 1" (FT)
H(max) = 41.0 m | Q(max) = 4.2 m³/h
Suction height (max.): 6 m
CE | WEEE | Made in EU
for water supply, pressure boosting, irrigation and rainwater harvesting
230V|1Ph|50Hz| P1=1.05kW | P2=0.60kW | I=4.7 A | 2-pole
Insulation class: F | Protection Degree: IP44
- low noise operation -
with fan-cover and motor-support
Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel
Impeller in stainless steel (AISI 304)
Service-free mechanical seal (Carbon/Ceramic/NBR)
O-Rings in NBR
integrated thermal-overload
Pump Bracket, Motor Support & Casing in Aluminium
Ejector/Diffuser in PPE+PS (reinforced)
T(max): 45°C
Suction Intake: 1¼“ (FT)
Discharge: 1" (FT)
H(max) = 41.0 m | Q(max) = 4.2 m³/h
Suction height (max.): 6 m
CE | WEEE | Made in EU
