Quantity | Unit price |
---|---|
To 9 | €693.72 * (€564.00 excl. VAT, VAT: €129.72 * ) |
From 10 | €676.38 * (€549.90 excl. VAT, VAT: €126.48 * ) |
From 20 | €659.03 * (€535.80 excl. VAT, VAT: €123.23 * ) |
From 30 | €633.02 * (€514.65 excl. VAT, VAT: €118.37 * ) |
Prices incl. VAT plus transport costs
Delivery free of charge! (ROI & NI)
Delivery time ca. 3-4 working days
- Item-Number: 1665070000B
- Manufacturer-No.: 1665070000B
- EAN / GTIN: 8052990492138
- Weight: 14.3 kg
- Manufacturer: EBARA

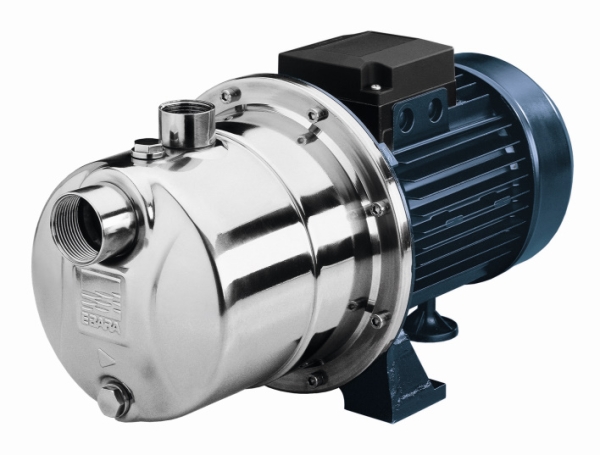

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304)
for water supply, pressure boosting, irrigation and rainwater harvesting
230V|1Ph|50Hz| P1=1.70 kW P2=1.10 kW, I=7.6 A | 2-pole
Insulation class: F | Protection Degree: IP44
- low noise operation -
with fan-cover and motor-support
Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel
Impeller in stainless steel (AISI 304)
Service-free mechanical seal (Carbon/Ceramic/NBR)
O-Rings in NBR
integrated thermal-overload
Pump Bracket, Motor Support & Casing in Aluminium
Ejector/Diffuser in PPE+PS (reinforced)
T(max): 45°C
Suction Connection: 1¼“ (FT)
Discharge Connection: 1" (FT)
H(max) = 59.0 m | Q(max) = 4.5 m³/h
Suction height (max.): 6 m
CE-Kennzeichnung | WEEE | Made in EU
Manufacturer:
EBARA Pumps Europe S.p.A., Via Torri di Confine 2/1 int. C, 36053 Gambellara (Vicenza), Italy
Phone: +39 0444 706811
Email: ebara_pumps@ebaraeurope.com
Web: www.ebaraeurope.com
