€454.61
excl. VAT: €369.60 VAT: €85.01 *
Quantity | Unit price |
---|---|
To 9 | €454.61 * (€369.60 excl. VAT, VAT: €85.01 * ) |
From 10 | €443.24 * (€360.36 excl. VAT, VAT: €82.88 * ) |
From 20 | €431.88 * (€351.12 excl. VAT, VAT: €80.76 * ) |
From 30 | €414.83 * (€337.26 excl. VAT, VAT: €77.57 * ) |
Prices incl. VAT plus transport costs
Delivery free of charge! (ROI & NI)
Delivery time ca. 3-4 working days
- Item-Number: 1650040000
- Manufacturer-No.: 1650040000
- EAN / GTIN:
- Weight: 10.5 kg
- Manufacturer: EBARA
Self-priming single-impeller centrifugal pump in stainless steel (AISI 304) for water supply,... more

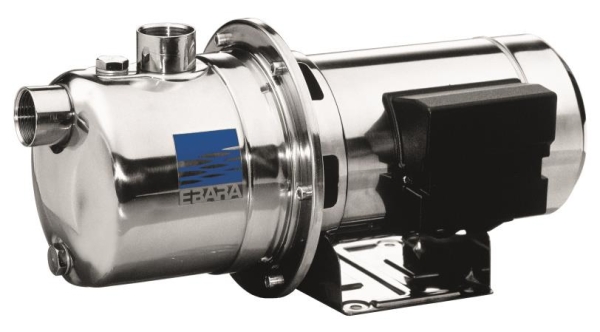

Product information "EBARA JEM 80"
Self-priming single-impeller centrifugal pump in stainless steel (AISI 304)
for water supply, pressure boosting, irrigation and rainwater harvesting
230V|1Ph|50Hz| P1=1.05kW | P2=0.60kW | I=4.7 A | 2-pole
Insulation class: F | Protection Degree: IP44
- low noise operation -
with fan-cover and motor-support
Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel
Impeller in stainless steel (AISI 304)
Service-free mechanical seal (Carbon/Ceramic/NBR)
O-Rings in NBR
integrated thermal-overload
Motor Bracket in stainless steel (AISI 304)
Ejector/Diffuser in PPE+PS (reinforced)
T(max): 45°C
Suction Intake: 1¼“ (FT)
Discharge: 1" (FT)
H(max) = 41.0 m | Q(max) = 4.2 m³/h
Suction height (max.): 6 m
CE | WEEE | Made in EU
for water supply, pressure boosting, irrigation and rainwater harvesting
230V|1Ph|50Hz| P1=1.05kW | P2=0.60kW | I=4.7 A | 2-pole
Insulation class: F | Protection Degree: IP44
- low noise operation -
with fan-cover and motor-support
Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel
Impeller in stainless steel (AISI 304)
Service-free mechanical seal (Carbon/Ceramic/NBR)
O-Rings in NBR
integrated thermal-overload
Motor Bracket in stainless steel (AISI 304)
Ejector/Diffuser in PPE+PS (reinforced)
T(max): 45°C
Suction Intake: 1¼“ (FT)
Discharge: 1" (FT)
H(max) = 41.0 m | Q(max) = 4.2 m³/h
Suction height (max.): 6 m
CE | WEEE | Made in EU
