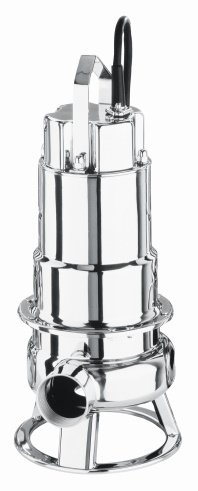

EBARA DW VOX 200

Stainless Steel Submersible Pump for clear and waste water with 10m cable
400V|3Ph|50Hz| P1=1.92kW| P2=1.50kW| I=3.3A
discharge outlet: 2“ (FT)
without automatic level control
with VORTEX-impeller
50 mm solids passage
H(max)=13.8m | Q(max)=42.0m³/h
Submergence(max)=7m
Cable: 4x 1.5mm²+ 2x 0.5mm² (H07RN-F)
(thermal contact included for external motor-protection)
Overload-Protection: to be provided on-site
WEEE-certified
