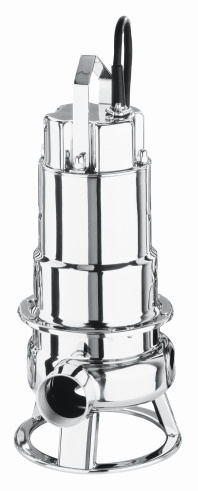

EBARA DW VOX 100

Stainless Steel Submersible Pump for clear and waste water with 10m cable
400V|3Ph|50Hz| P1=1.18kW| P2=0.75kW| I=2.1A
discharge outlet: 2“ (FT)
double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR)
without automatic level control
with VORTEX-impeller
50 mm solids passage
H(max)=9.0m | Q(max)=30.0 m³/h
Submergence(max)=7m
Cable: 4x 1.5mm²+ 2x 0.5mm² (H07RN-F)
(thermal contact included for external motor-protection)
Overload-Protection: to be provided on-site
WEEE-certified | CE | Made in EU
