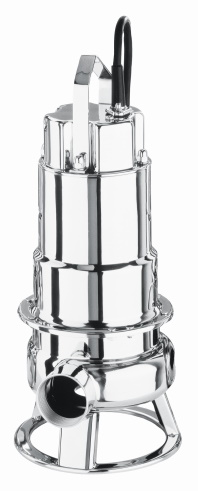

EBARA DW 75

Stainless Steel Submersible Pump for clear and waste water with 10m cable
400V|3Ph|50Hz| P1=0.85kW| P2=0.55kW| I=1.5A
discharge outlet: 2“ (FT)
without automatic level control
with single-channel-impeller
50 mm solids passage
H(max)=11.0m | Q(max)=30.0 m³/h
Submergence(max)=7m
Cable: 4x 1.5mm²+ 2x 0.5mm² (H07RN-F)
(thermal contact included for external motor-protection)
Overload-Protection: to be provided on-site
WEEE-certified
