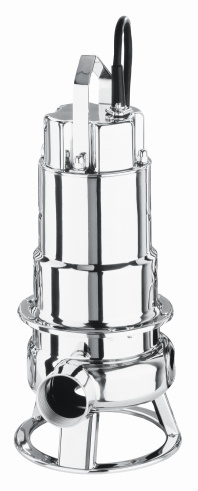

EBARA DW 300

Stainless Steel Submersible Pump for clear and waste water with 10m cable
400V|3Ph|50Hz| P1=2.90kW| P2=2.20kW| I=5.0A
discharge outlet: 2“ (FT)
without automatic level control
with single-channel-impeller
50 mm solids passage
H(max)=21.8m | Q(max)=54.0m³/h
Submergence(max)=7m
Cable: 4x 1.5mm²+ 2x 0.5mm² (H07RN-F)
(thermal contact included for external motor-protection)
Overload-Protection: to be provided on-site
WEEE-certified
