EBARA IDROGO M80/15 A multistage submersible pump

Preview: EBARA Idrogo | Pump Chamber Dimensions (mm)

EBARA Idrogo | Pump Chamber Dimensions (mm)

€841.57

excl. VAT: €684.20 VAT: €157.37 *

Quantity	Unit price
To 4	€841.57 * (€684.20 excl. VAT, VAT: €157.37 * )
From 5	€810.96 * (€659.32 excl. VAT, VAT: €151.64 * )
From 10	€780.36 * (€634.44 excl. VAT, VAT: €145.92 * )
From 20	€765.06 * (€622.00 excl. VAT, VAT: €143.06 * )

Prices incl. VAT plus transport costs

Delivery free of charge! (ROI & NI)

Delivery time ca. 3-4 working days

Item-Number: 1592074621
Manufacturer-No.: 1592074621
EAN / GTIN: 8052990494354
Weight: 17.9 kg
Manufacturer: EBARA

5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m... more

Close menu

Product information "EBARA IDROGO M80/15 A"

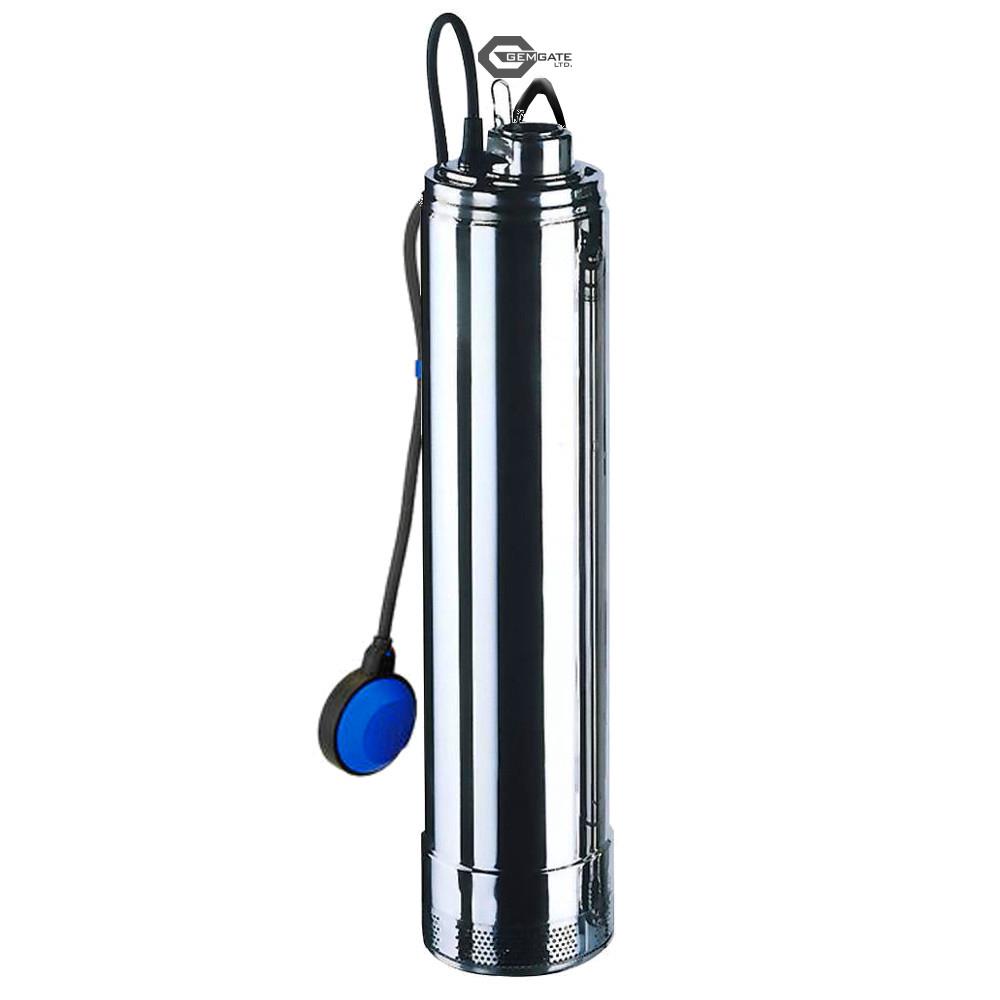

5"-Vertical multistage submersible pressure pump in stainless-steel for clean water with 20m cable
230V|1Ph|50Hz| P1= 1.62kW| P2= 1.10kW| I=7.5A
for pressurised water-supply from wells, cistern tanks & rainwater harvesting tanks
Fully submerged or partially submerged operation| IP 68
Insulation-Class: F | 2-pole
T(max)=40°C
Dry-Run protective operation via Float-Switch
Pump body, casing cover in stainless steel (CrNi-Steel 1.4301)
External casing & motor casing in stainless steel (CrNi-steel 1.4301)
Double mechanical seal (carbon/ceramic/NBR) with interpoised oil-chamber
Impeller & diffuser in technopolymer
Discharge outlet: 1¼“ (FT)
Sieve intake | Solids passage: 2.5 mm
H(max)= 62.0 m | Q(max)=7.2 m³/h
Submergence(max)=17 m
WRAS-approved | TÜV/GS-certified | CE-certified | WEEE-vertified
Made in EU
