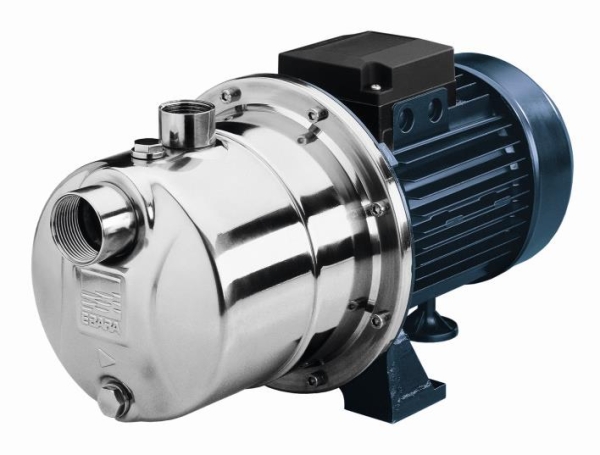

EBARA JEXM/B 150

Self-priming single-impeller centrifugal pump in stainless steel (AISI 304)
for water supply, pressure boosting, irrigation and rainwater harvesting
230V|1Ph|50Hz| P1=1.70 kW P2=1.10 kW, I=7.6 A | 2-pole
Insulation class: F | Protection Degree: IP44
- low noise operation -
with fan-cover and motor-support
Pump Body (AISI 304) & Shaft (AISI 303) in stainless steel
Impeller in stainless steel (AISI 304)
Service-free mechanical seal (Carbon/Ceramic/NBR)
O-Rings in NBR
integrated thermal-overload
Pump Bracket, Motor Support & Casing in Aluminium
Ejector/Diffuser in PPE+PS (reinforced)
T(max): 45°C
Suction Connection: 1¼“ (FT)
Discharge Connection: 1" (FT)
H(max) = 59.0 m | Q(max) = 4.5 m³/h
Suction height (max.): 6 m
CE-Kennzeichnung | WEEE | Made in EU

Manufacturer:
EBARA Pumps Europe S.p.A., Via Torri di Confine 2/1 int. C, 36053 Gambellara (Vicenza), Italy
Phone: +39 0444 706811
Email: ebara_pumps@ebaraeurope.com
Web: www.ebaraeurope.com
