Quantity | Unit price |
---|---|
To 29 | €77.74 * (€63.20 excl. VAT, VAT: €14.54 * ) |
From 30 | €63.16 * (€51.35 excl. VAT, VAT: €11.81 * ) |
From 60 | €53.44 * (€43.45 excl. VAT, VAT: €9.99 * ) |
From 120 | €48.59 * (€39.50 excl. VAT, VAT: €9.09 * ) |
Prices incl. VAT plus transport costs
Ready for dispatch! Delivery-time: 1-3 working days (ROI & NI)
- Item-Number: SSL05A
- Manufacturer-No.: SSL05A
- EAN / GTIN: 4014440550090
- Weight: 0.8 kg
- Manufacturer: GEMGATE

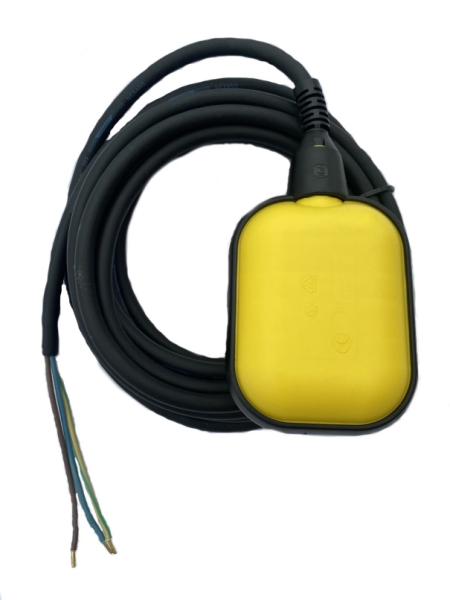

3x 1.0mm² cable (L-L1-PE) | Cable Type: HO7RN-F
Cable length: 5m | 3x core cable (L-L1-PE) with protective earth-conductor (PE)
10(6) A | 250 V | IP68
Function: emptying
Switching angle: ±45°
Material: non-toxic polypropylene
Dimensions (mm): 80.5 x 165 x 42
T(max.): 85°C
Certifications: VDE, ENEC, CE | Made in Germany
The float switch in the upward position closes the contact between L & L1. In the downward position the contact between L & L1 is opened.
Applications:
- level-controlled operation (ON/OFF) of a submersible pump in a sump chamber
- high level alarm in a sump chamber or tank
- pump dry-run protection; low-level device in a tank
The float switch activates the pump or high level alarm and can be used in wastewater pump stations, drainage sump chambers, sewage treatment plants and septic tanks.
Installed as a low-level device in a rainwater harvesting tank, the float switch can also provide pump dry-run protection.
Brown = L; phase/power supply
Blue = L1; to pump or alarm
Green/Yellow = PE (earth conductor)
SAFETY NOTICE: due to submerged operation, a float switch with earth conductor (PE) is recommended at any installation with up to 250V. All float switches supplied by GEMGATE Limited are equipped with an earth conductor!
