EBARA RIGHT 75 MA

Stainless Steel Submersible Pump for clear and waste water with 10m cable
230V|1Ph|50Hz| P1= 1.00kW| P2= 0.55kW| I=4.8A
discharge outlet: 1½“ (FT), T(max) = 50°C

double mechanical seal (motor-side: carbon/ceramic/NBR | pump-side: SIC/SIC/NBR)
with automatic level control
35 mm solids passage
H(max)=8.8 m | Q(max)=14.4 m³/h
Submergence(max)=7 m
WEEE-certified | CE | Made in EU

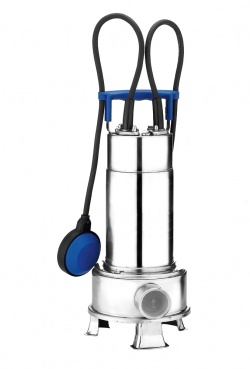

The EBARA RIGHT 75 MA is a complete stainless-steel submersible pump with float-switch for automatic level control operation.

It is used in sump pump chambers for general drainage, wastewater & sewage water handling with a solids passage of up to 35mm.

Motor-cooling is provided by the surrounding medium within the sump chamber. It is therefore recommended to operate the EBARA RIGHT 75 MA fully submerged. Operating the pump only partially submerged is fine for brief periods as the float-switch drops down to the switch OFF level. Prolonged operation only partially submerged should however be avoided.

Applications include draining wells, garages, cellars or places subject to flooding.

Wastewater Treatment System Pump

The EBARA RIGHT 75 MA is also suitable as a submersible pump in domestic wastewater treatment systems and septic tanks to discharge treated effluent to the subsoil polishing filter or percolation area.

The EBARA RIGHT 75 MA submersible pump is suitable for several domestic and commercial wastewater treatment systems in Ireland where higher pumping volume is required. Some treatment systems are listed below:

(when replacing a pump, please check the technical details on the label of the existing pump and compare with the above. Assistance is available.)
