Float Switch 5m | Emptying | G

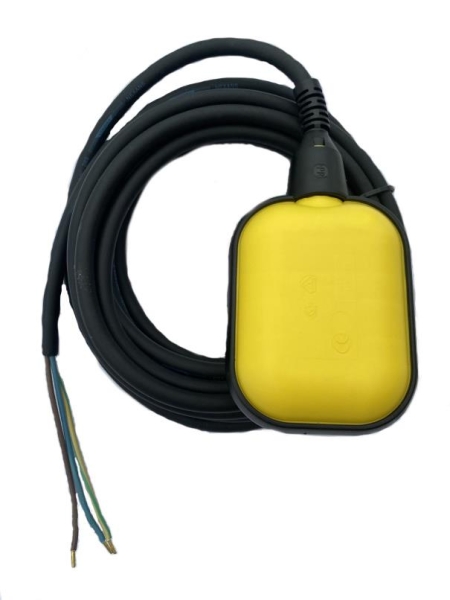

Float Switch with 5m cable | emptying
€77.74
excl. VAT: €63.20 VAT: €14.54 *
Quantity Unit price
To 29 €77.74 * (€63.20 excl. VAT, VAT: €14.54 * )
From 30 €63.16 * (€51.35 excl. VAT, VAT: €11.81 * )
From 60 €53.44 * (€43.45 excl. VAT, VAT: €9.99 * )
From 120 €48.59 * (€39.50 excl. VAT, VAT: €9.09 * )

Prices incl. VAT plus transport costs

Ready for dispatch! Delivery-time: 1-3 working days (ROI & NI)

  • SSL05A
  • SSL05A
  • 4014440550090
  • 0.8 kg
  • GEMGATE
3x 1.0mm² cable (L-L1-PE) | Cable Type: HO7RN-F Cable length: 5m | 3x core cable (L-L1-PE)... more
Product information "Float Switch 5m | Emptying | G"

3x 1.0mm² cable (L-L1-PE) | Cable Type: HO7RN-F
Cable length: 5m | 3x core cable (L-L1-PE) with protective earth-conductor (PE)
10(6) A | 250 V | IP68
Function: emptying
Switching angle: ±45°
Material: non-toxic polypropylene
Dimensions (mm): 80.5 x 165 x 42
T(max.): 85°C
Certifications: VDE, ENEC, CE | Made in Germany


The float switch in the upward position closes the contact between L & L1. In the downward position the contact between L & L1 is opened.


Applications:

  • level-controlled operation (ON/OFF) of a submersible pump in a sump chamber
  • high level alarm in a sump chamber or tank
  • pump dry-run protection; low-level device in a tank


The float switch activates the pump or high level alarm and can be used in wastewater pump stations, drainage sump chambers, sewage treatment plants and septic tanks.


Installed as a low-level device in a rainwater harvesting tank, the float switch can also provide pump dry-run protection.


Brown = L; phase/power supply

Blue = L1; to pump or alarm

Green/Yellow = PE (earth conductor)



SAFETY NOTICE: due to submerged operation, a float switch with earth conductor (PE) is recommended at any installation with up to 250V. All float switches supplied by GEMGATE Limited are equipped with an earth conductor!



Item is being been phased-out/discontinued - only limited stock remaining!
